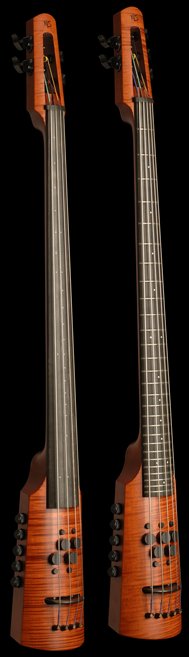

NS Design CR4 Omni Bass Electric upright Bass

Click to enlarge
omni-ns$3,849.00

Overview

The Omni Bass breaks through conventional barriers by integrating phenomenal acoustic and electric bass tones with the familiar 34 inch bass guitar scale. Four and five string fretless and fretted models use identical fingering to that of the conventional bass guitar, yet deliver dynamic new plucked and bowed sounds for the serious bass guitarist who wants to expand his expressive range. Tuned to E or down to low B, this radical new electric bass combines the tonal purity of the acoustic upright with the awesome power of the full-blown electric, resulting in the most versatile bass on the market today.

From punchy, percussive attack to smooth, singing sustain, the Omni Bass's exclusive Polar™ piezo pickup is the only system that allows the bassist to control the attack and decay of the plucked string. EMG magnetic pickups add classic electric sounds. The on-board pre-amp, EQ, and mixer allow the player full control of this wide tonal palette right from the instrument.

The Omni Bass responds to the bow with a natural and expressive voice, combining powerful bass resonance with brilliant harmonics. The strings are easily driven on both fretted and fretless models, making it possible for bassists with little bowing experience to add this beautiful dimension to their music.

Deep, resonant bass response is the essence of this remarkable new instrument. Whether plucked or bowed, the Omni Bass delivers pure, exciting acoustic and electric bass sounds that can be tailored to compliment virtually any musical style or gig. Features

34" Scale: The 34" scale length of the Omni Bass is the same as standard electric bass, and is available in 4 and 5 string versions, fretted or fretless. Tuned in fourths (EADGC or BEADG), the fingering positions and spacing are identical to the bass guitar, and therefore immediately familiar to any bass player. The Omni Bass can also be tuned in fifths, for fingerings that are more natural for the cellist seeking enhanced bass range.

Fingerboard: The fretted Omni Bass features a highly arched fingerboard, similar to a cello, to optimize bow articulation, but is also available with the TransRadius™ fingerboard by special order. Fretless Omni Bass models now employ the TransRadius fingerboard. The TransRadius feature provides the comfort and ease of a nearly-flat profile as the fingerboard approaches the nut, while transitioning to a curvature optimized for either plucked or bowed performance at the bridge.

Cascading Position Markers: Dots for each semi-tone cascade across the fingerboard, a unique configuration that provides a clear visual fingering reference. The logical dot pattern is of critical value to the novice player, and an invaluable reference guide for the seasoned pro. Fretted models have conventional bass guitar dot pattern.

Polar Pickup System: The multiple sensor NS Polar bridge pickup system has two modes of operation: "arco" and "pizzicato". This allows the player to optimize bowed response, and to control attack and decay characteristics for plucking. The deep bass and brilliant highs possible with piezo crystal technology give the instrument a beautiful, dynamic, and versatile sound.

EMG™ Magnetic Pickups: Custom designed EMG low impedance magnetic pickups have a smooth response with lots of sweet midrange for the quintessential "electric" tone. Their relatively flat frequency response allows the natural sound of the instrument to project through. Each pickup is individually adjustable and internally shielded an internal preamp system for hum free performance.

Active Controls: Two balance controls allow unlimited mixing options for the magnetic and the dual mode Polar Pickup systems. On-board pre-amplification provides master volume, bass and treble controls. The 18 volt power supply insures plenty of headroom for full dynamics. Polar Pickup systems. On-board pre-amplification provides master volume, bass and treble controls. The 18 volt power supply insures plenty of headroom for full dynamics.

TransRadius Details: The TransRadius, now standard on the fretless Omni Bass, involves a unique compound curve. For a left-hand feel which is familiar to the experienced bass guitarist, the radius at the nut is ten inches. At the end of the fingerboard near the bridge, however, the radius is just 2.5 inches, large enough to maintain good string-to-string articulation with the bow, yet still comfortable for pizzicato (plucked/picked) style. The transition from nut to bridge features a carefully calibrated asymmetric convex curvature, providing optimal fingerboard relief at each position. For even greater control, players can adjust the truss rod to tailor the neck relief to their particular needs.

The result is a remarkably comfortable, even feel for every style of performance, and bass guitarists will find the Omni Bass even more inviting than ever as their "cross-over" instrument. Traditional upright players will also find the TransRadius design quite comfortable since many upright basses are designed with some degree of compound fingerboard curvature.

Interchangeable Support Systems: The Boomerang™ Strap System is standard with the CR Omni Bass. Two articulated arms and a pivoting hub allow full mobility on stage or in studio. The comfortable Boomerang strap fits over the shoulder just like a guitar, but the adjustable arms allow the instrument to be placed in virtually any position in relation to the hands and body. The Boomerang Strap System allows full mobility for either bowing or plucking. Watch the Boomerang Strap video demonstration. (requires Apple Quicktime)

The optional self-standing Tripod stand provides stable fixed support for the instrument. Virtually any angle can be set whether you prefer standing or sitting. A matching black finish provides a sleek compliment to the instrument.

The optional End Pin stand provides a more upright bass feel. It too is easily adjustable so that the instrument remains evenly balanced without support. The End Pin Stand conversion kit attaches to the tripod stand to hold the instrument upright for on-stand performance or when not in use.

Tunings: Five strings cover the range of the double bass, bass guitar, and cello. They are available in 3 tunings:

* High C bass guitar tuning: E,A,D,G,C (low to high in 4ths) Standard * Low B bass guitar tuning: B,E,A,D,G (low to high in 4ths) * Octave cello tuning: C,G,D,A,E (low to high in 5ths)

Strings: Steel, aluminum, tungsten, and bronze are combined to make strings that are unusually responsive, with singing highs and a deep low register. These polished low-tension flatwound strings are effortless to play and minimize unwanted finger noise. The bright pizzicato growl provides an authentic acoustic tone, yet these strings deliver plenty of sustain and drive when you need it. Developed in collaboration with D'Addario, these strings are also ideal for bowing. They respond much quicker to the bow than traditional bass strings, so expressive bow technique is easier to develop and maintain. The Omni Bass is designed to accommodate any standard bass guitar string, adding unlimited set up options for musicians who want to explore & create their own unique sound.

Flight Case (optional): Aluminum edged plywood measuring 145cm x 25cm x 25cm (57" x 10" x 10") with loaded weight of approximately 18 kg (40 lb) including stand.

Hand Crafted Maple and Ebony: Each instrument is hand-made in the Czech Republic to the highest standard by craftsmen steeped in a long tradition of instrument making.
